Fabricante: ASUS - PLACA MÃE
Categoria: PLACAS-MÃE
Part Number: F1A55-M LX
Garantia: 12 Meses
Descricão Técnica:

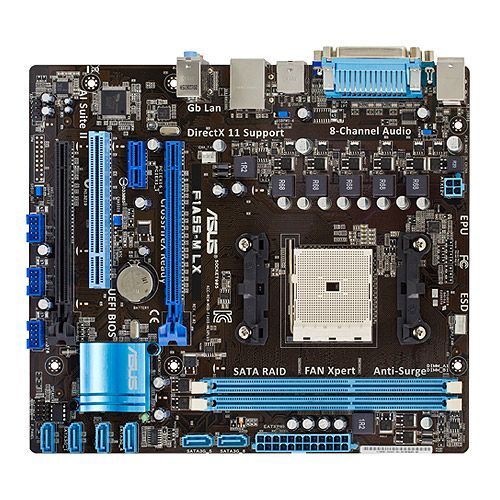

F1A55-M LX

Mouse-controlled UEFI BIOS with AMD A55 Chipset & CrossFireX Support

•UEFI BIOS - EZ Mode - Flexible & Easy BIOS Interface
•EPU - Energy Efficiency All Around
•Anti-Surge - Real-time Safeguard Your Devices!
•AI Suite II - One-stop Access to Innovative ASUS Features
•Multi-GPU CrossFireX Support!

Specifications

CPU AMD Socket FM1 A- Series/E2- Series Accelerated Processors
Supports AMD® Turbo Core 2.0 Technology.
* The AMD® Turbo Core 2.0 Technology Support depends on the APU types.

Chipset AMD A55 FCH (Hudson D2).

Memory

2 x DIMM, Max. 32GB, DDR3 2250(O.C.)/1866/1600/1333/1066 MHz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture.

* The Max. 32GB memory capacity can be supported with DIMMs of 16GB (or above). ASUS will update QVL once the DIMMs are available on the market.
* Refer to www.asus.com or user manual for the Memory QVL (Qualified Vendors Lists).

Graphic

Integrated AMD Radeon™ HD 6000 Series Graphics in Llano APU
VGA output support : RGB port
- Supports RGB with max. resolution 1920 x 1600 @ 60 Hz
Supports DirectX 11

Multi-GPU Support
Supports AMD CrossFireX™ Technology

Expansion Slots

1 x PCIe 2.0 x16 (blue)
1 x PCIe 2.0 x16 (x4 mode, black)
1 x PCIe 2.0 x1
1 x PCI

Storage

AMD A55 FCH (Hudson D2) chipset :

6 x SATA 3Gb/s port(s), blue
Support Raid 0, 1, 10, JBOD

LAN
Realtek® 8111E , 1 x Gigabit LAN Controller(s)

Audio

Realtek® ALC887 8-Channel High Definition Audio CODEC
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking

USB Ports

AMD A55 FCH (Hudson D2) chipset :
12 x USB 2.0 port(s) (6 at back panel, black, 6 at mid-board)

Overclocking Features
Overclocking Protection :
- ASUS C.P.R.(CPU Parameter Recall)

Special Features

ASUS EPU :
- EPU
ASUS Power Design :
- 4 +1 Phase Power Design
ASUS Exclusive Features :
- AI Suite II
- Ai Charger
- Anti-Surge
- Low EMI Solution
- ESD Guards
- ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
ASUS Quiet Thermal Solution :
- Stylish Fanless Design Heat-sink solution
- ASUS Fan Xpert
ASUS EZ DIY :
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 2
- ASUS MyLogo 2

Back I/O Ports

1 x PS/2 keyboard/mouse combo port(s)
1 x D-Sub
1 x LAN (RJ45) port(s)
6 x USB 2.0
1 x COM port(s)
1 x Parallel port(s)
3 x Audio jack(s)

Internal I/O

Ports 3 x USB 2.0 connector(s) support(s) additional 6 USB 2.0 port(s)
6 x SATA 3Gb/s connector(s)
1 x CPU Fan connector(s)
1 x Chassis Fan connector(s)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 4-pin ATX 12V Power connector(s)
1 x Front panel connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x Internal speaker connector(s)

Accessories
User's manual
I/O Shield
2 x SATA 3Gb/s cable(s)

BIOS
32 Mb Flash ROM, UEFI BIOS, PnP, DMI v2.0, WfM2.0, SM BIOS V2.6, ACPI V2.0a

Support Disc

Drivers
ASUS utilities
ASUS Update
Anti-virus software (OEM version)

Form Factor uATX Form Factor
9.6 inch x 8.4 inch ( 24.4 cm x 21.3 cm )
