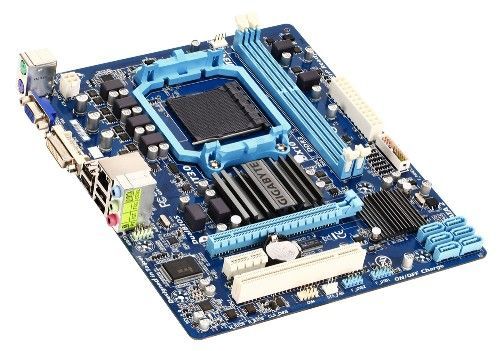

CPU AM3+ Socket:
1.Support for AMD AM3+ processor
2.Support for AMD AM3 Phenom™ II processor / AMD Athlon™ II processor
(Please refer "CPU Support List" for more information.)
'Hyper Transport Bus 1.4400 MT/s

Chipset 1.North Bridge: AMD 760G
2.South Bridge: AMD SB710

Memória 1.2 x 1.5V DDR3 DIMM sockets supporting up to 16 GB of system memory (Note 1)
2.Dual channel memory architecture
3.Support for 1333+ (O.C.)/1066/800 MHz memory modules
(Please refer "Memory Support List" for more information.)
Gráficos Onboard North Bridge:
1.1 x D-Sub port
2.1 x DVI-D port, supporting a maximum resolution of 1920x1200 (Note 2)

Áudio 1.Realtek codec
2.High Definition Audio
3.2/4/5.1/7.1-channel (Note 3)

LAN 1.1 x Atheros GbE LAN chip (10/100/1000 Mbit)

Slots de Expansão 1.1 x PCI Express x16 slot, running at x16
2.1 x PCI Express x1 slot
(All PCI Express slots conform to PCI Express 2.0 standard.) 3.1 x PCI slot

Interface de Armazenamento South Bridge:
1.6 x SATA 3Gb/s connectors supporting up to 6 SATA 3Gb/s devices
2.Support for SATA RAID 0, RAID 1, RAID 10, and JBOD

USB South Bridge:
1.Up to 8 USB 2.0/1.1 ports (4 on the back panel, 4 via the USB brackets connected to the internal USB headers)

Conectores Internos I/O 1.1 x 24-pin ATX main power connector
2.1 x 4-pin ATX 12V power connector
3.6 x SATA 3Gb/s connectors
4.1 x CPU fan header
5.1 x system fan header
6.1 x front panel header
7.1 x front panel audio header
8.2 x USB 2.0/1.1 headers
9.1 x serial port header
10.1 x clearing CMOS jumper

Conectores Painel Traseiro 1.1 x PS/2 keyboard port
2.1 x PS/2 mouse port
3.1 x D-Sub port
4.1 x DVI-D port
5.4 x USB 2.0/1.1 ports
6.1 x RJ-45 port
7.3 x audio jacks (Line In/Line Out/Microphone)

Controlador I/O 1.ITE IT8720 chip

Monitoramento H/W 1.System voltage detection
2.CPU/System temperature detection
3.CPU/System fan speed detection
4.CPU overheating warning
5.CPU/System fan fail warning
6.CPU/System fan speed control (Note 4)

BIOS 1.2 x 16 Mbit flash
2.Use of licensed AWARD BIOS
3.Support for DualBIOS™
4.PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b

Características Exclusivas 1.Support for @BIOS
2.Support for Q-Flash
3.Support for Xpress BIOS Rescue
4.Support for Download Center
5.Support for Xpress Install
6.Support for Xpress Recovery2
7.Support for EasyTune (Note 5)
8.Support for Smart Recovery
9.Support for Auto Green
10.Support for On/Off Charge
11.Support for Cloud OC
12.Support 3TB+ Unlock
13.Support for Q-Share

Pacote de Software 1.Norton Internet Security (OEM version)

Sistema Operacional 1.Support for Microsoft Windows 7/ Vista/ XP

Form Factor 1.Micro ATX Form Factor; 24.4cm x 20.6cm

Nota (Note 1) Due to Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of physical memory installed.

(Note 2) The DVI-D port does not support D-Sub connector by adapter.

(Note 3) To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.

(Note 4) Whether the CPU fan speed control function is supported will depend on the CPU cooler you install.

(Note 5) Available functions in EasyTune may differ by motherboard model.
Observação 1.Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
2.Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP SP1/SP2. If drivers are available from the vendors, we will update them on the GIGABYTE website.

Garantia de 3 meses loja
